Industrial LKB Brake

PARTS FINDER: INDUSTRIAL LKB BRAKE

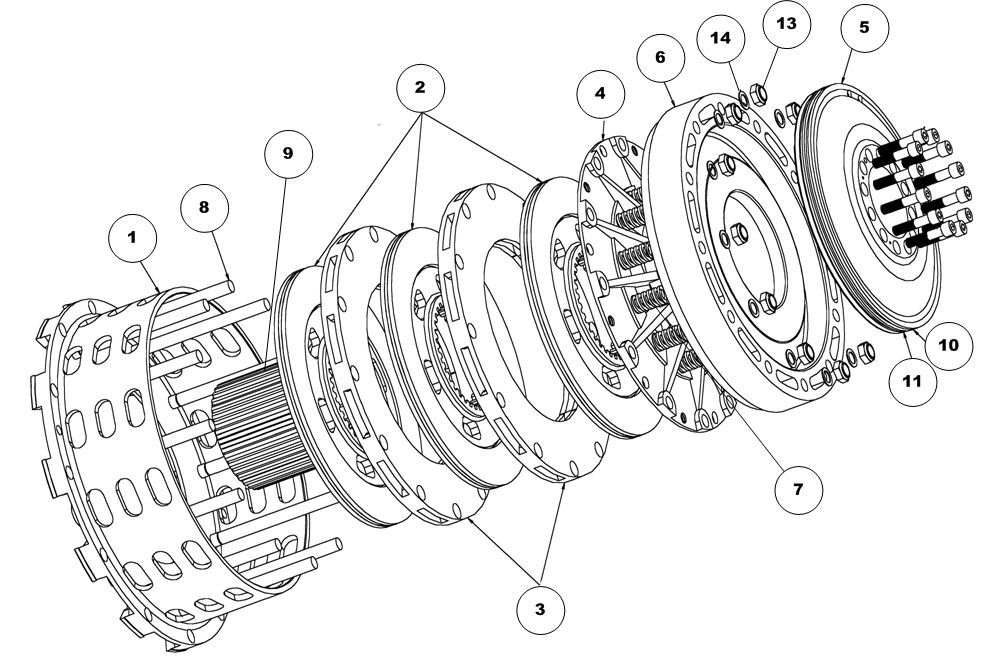

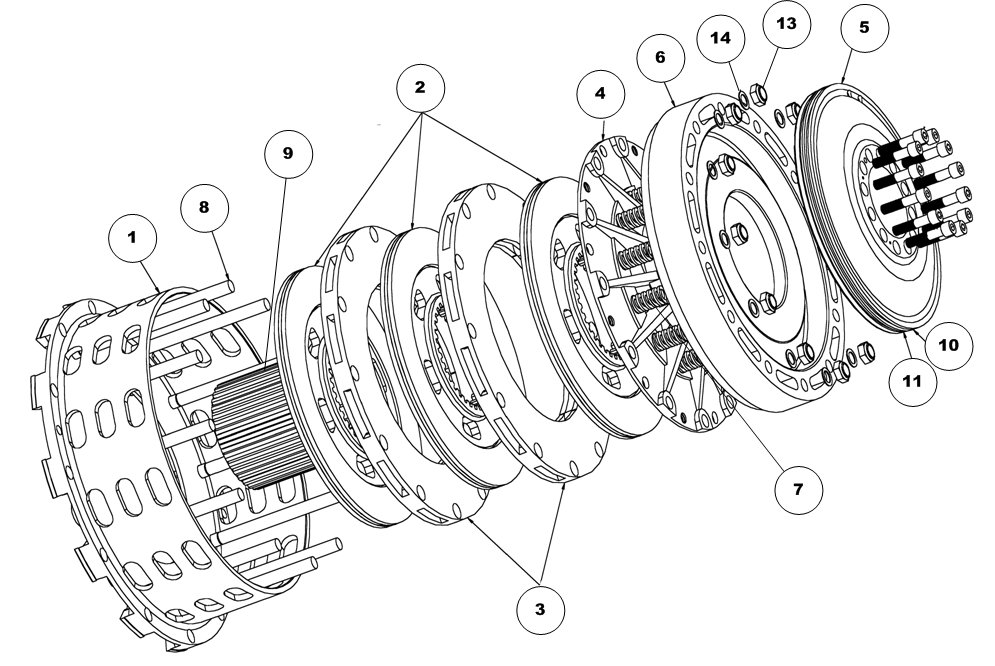

Figure I – LKB

Enter the quantity of each part you require and submit:

Step 1 of 2

Part Description

Balloon CCB Figure D

Ring/Backplate

1

Drive Plate

2

Center Disk

3

Pressure Plate

4

Piston

5

Cylinder

6

Spring Stud Assembly

7

Drive Stud

8

Hub

9 - Not Show

Split 0-Ring

10

ID, 0-Ring

12 - Not Shown

OD, 0-Ring

11

Stud Nuts

13

Stud Washers

14

(Optional) Please specify any model and/or serial numbers per part
